- Smooth slide with nylon bushing between ladder sections prevent galling and inadvertent deployment
- Hinged bracket allows for the ladder to fold over platform for easy fitting
- A slight angle to make it easirer to board rather than straight up and down
- Moulded Black vinyl tread to facilitate easy boarding and ensuring maximum grip for the user, reducing slippage
- Moulded Black vinyl tread to facilitate easy boarding and ensuring maximum grip for the user, reducing slippage
- 1 x 4 Step Outboard Swim Platform Ladder, 4 x 1.2" long Mounting Screws(The diameter of the hole for screw is about 6mm/0.23inch) .

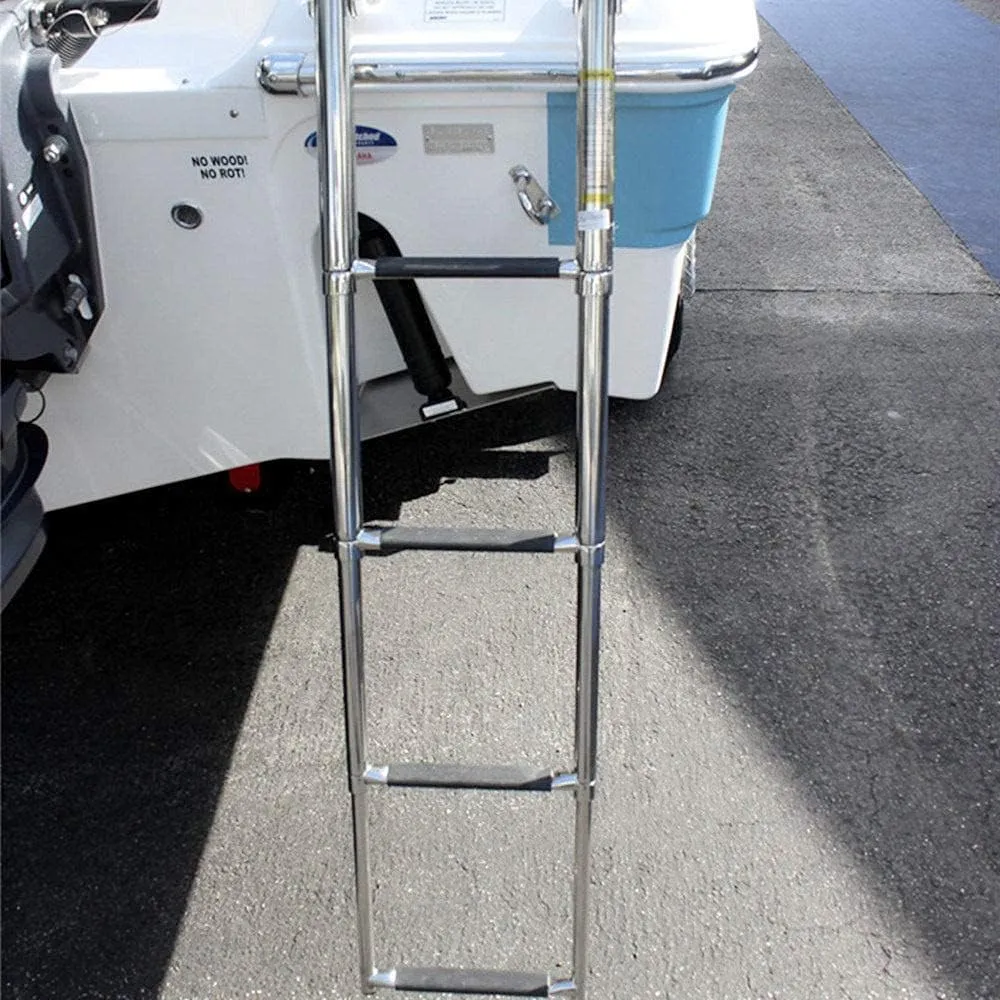

Hoffen 4 Step Ladder Stainless Steel Telescoping Extendable Ladder 600 Pound Capacity for Marine Yacht/Swimming Pool
The 4 step telescopic boat ladder is made of high quality stainless steel.
This telescopic boat ladder is made to be bolted to a horizontal platform such a the boat floor or side railings depending on the installation.
The design of this platform ladder makes it possible to be used as on a pontoon boat.
Some of customers have also used this as a low profile dock ladder.
Installation is very easy, simply bolt the ladder to a horizontal platform and you are ready to use it!
The steps feature non-slip rubber for your safety as well as a Velcro strap for securing the ladder in a non extended position.
Sleek and contemporary design Telescopic closure to only 393mm for easy storage
Telescopic length 393mm (min) to 1155mm (max)
Ladder width: 295mm
Mounting screws INCLUDED
Specification
Marine Grade Stainless Steel
Length Stowed: 15-1/2" (393mm)
Length Deployed : 45-1/2" (1155mm)
Centrum Width : 10" (250mm)
Stainless Steel Diameter - 32/25/19mm
25.4cm mounting hole distance
Surface Finish: Polished
How To Mount
1.Choose the most suitable side of your transom platform for mounting the ladder.
2.When mounting, locate a place where the ladder will not interfere with the turning of the motor or be near the propeller of your craft.
3.Position the mounting bracket with the ladder in the area to be attached.
4.Mark the bracket’s eight mounting holes onto the deck surface.
5.Drill the eight marked holes with a suitable drill bit. NOTE: It is recommended to through-bolt this ladder for a secure installation.
6.Mount the ladder in place by holding bracket up to platform and inserting mounting screws (INCLUDED). Secure ladder in place with fasteners
