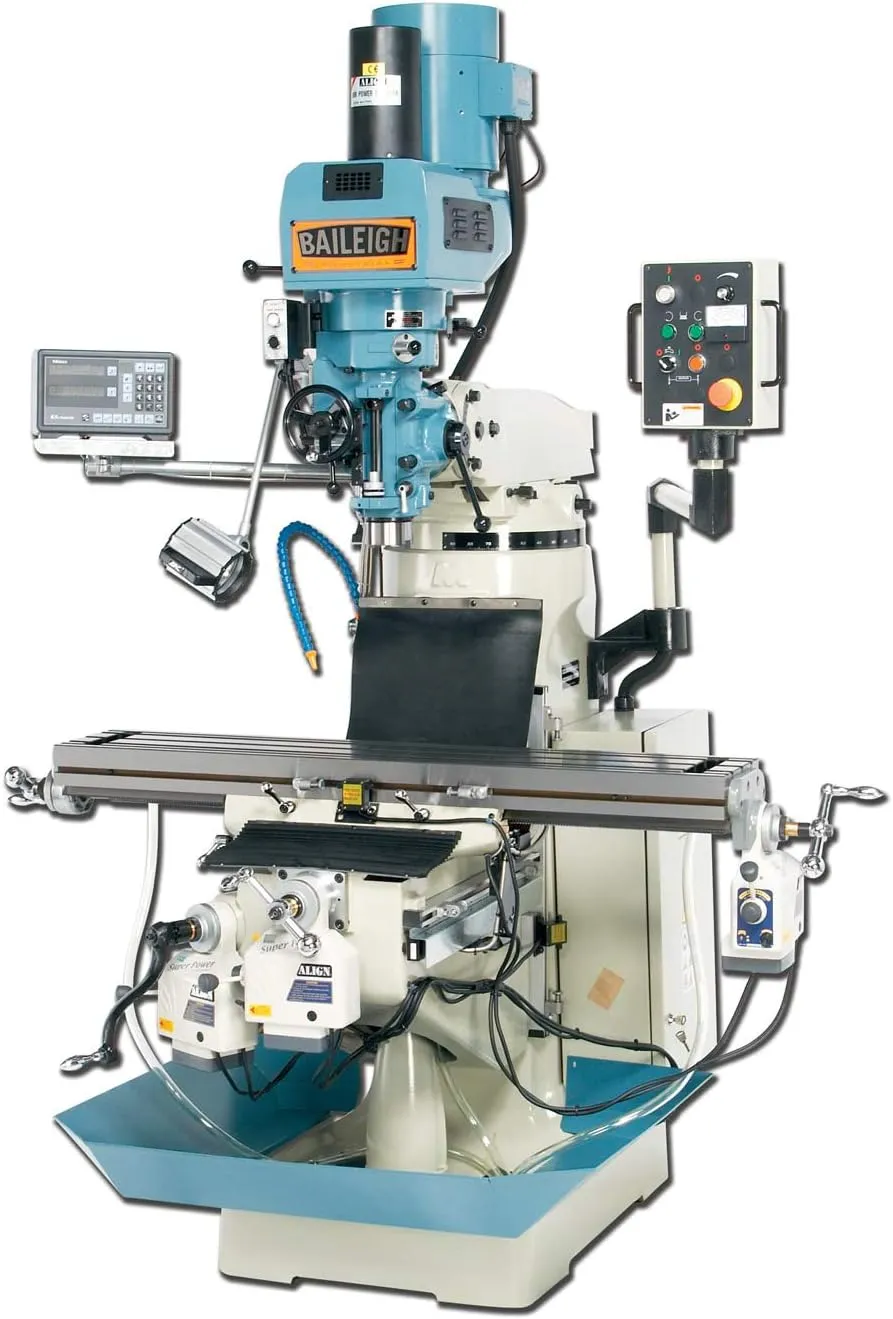

When looking for a conventional style knee milling machine, Baileigh Industrial leads the pack in both quality and standard features. Baileigh Industrial's milling machine is no exception and is great for any small to medium machine shop or fabrication shop. Like all Baileigh machines, it's packed with tons of standard features that are options on most other brands. The VM-949 is fully variable speed through the use of a Yaskawa inverter drives. Speeds are adjustable from 0 to 4200 rpm. Adjustable spindle speeds help prolong tooling life as well as allows some applications that cannot be done on a standard drill press, such as thermal friction drilling. The VM-949 is available in two different voltages, 220 volt single and three phase, these variances allow the VM-949 to be used in almost any shop. Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame work out of. The stronger you make he platform the better the cutting is. This is not the place to use an inferior process. To make the VM-949 milling machine even stronger, a NST 40 spindle is standard. This type spindle is stronger and give the operator a choice of larger tooling should the need arise. Other standard features of the VM-949 milling machine include an air draw bar, coolant system with catch tray, square slide ways and X and Y axis ball screws. Specifications - Spindle center to column min max: 8.38-inches; spindle diameter: 3-3/8-inches; spindle feed per rev: 0.0015-inches/0.003-inches/0.005-inches; spindle head swivel: 45; motor spindle: 3 hp; travel auto X axis: 25.19-inches; travel auto Y axis: 12-inches; travel auto Z axis: 16-inches; travel manual X axis: 28.5-inches; travel manual Y axis: 12-inches; travel manual Z axis: 16-inches; spindle nose to table min max: 2.24-inches; table load capacity: 440 pounds; T slots: 0.625-inches; cross travel of ram: 12.59-inches; spindle travel: 5-inches.
