- P Offset Slide-Arm Hardware Package for Doors with 5/8" Shallow Top Rails
- Spring Power Adjustable Closer Suitable for Doors From 30" to 42" (762 mm to 1.07 m) Wide
- Five Year Limited Warranty
- U.L. Listed
Specifications
- Americans with Disabilities Act (ADA) Compliant : Yes
- Body Height (Inches) : 1-11/16
- Body Length (Inches) : 11-5/8
- Body Width (Inches) : 3-11/16
- Brand : Jackson
- Case Quantity : 4
- Closer Type : Overhead Concealed
- Handing : Non-Handed
- Material : Aluminum
- Maximum Door Weight (Pounds) : 250
- No Hold Open : 105 °
- Package Type : Offset Arm P
- Recommended Door Type : Aluminum, Hollow Metal
- Similar : 21201A62817, 21201A62820
- Spindle Length (Inches) : 1/2
- Spring Size : Adjustable
- Top Rail Depth (Inches) : 5/8
- UL Listed : Yes
- Hold Open : 90 °
- Includes : 20101M20, 201129, 20101M17, 201129
- Arm Type : "P" Offset Slide-Arm
- Replacement Parts : 20106313, 20117313, DCU4DUS, 201134LC313, 20106628, 201134LC628
- Finish/Color: Aluminum, Dark Bronze

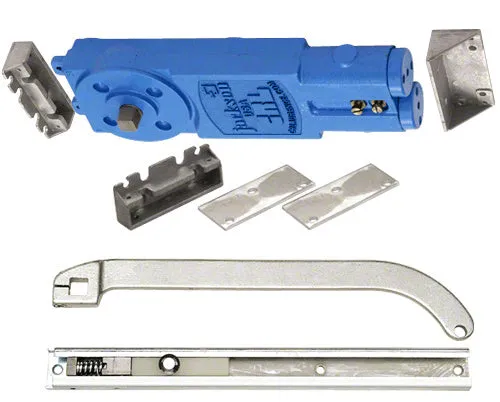

The CRL Jackson ® 21201 Series Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 201178 Mounting Clips, 201133 Offset Arm Package, 201129 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
Downloads
Click for Installation-Instructions
