- S Offset Slide-Arm Hardware Package for Doors with 7/8" Shallow Top Rails
- Spring Power Adjustable Closer Suitable for Doors From 30" to 42" (762 mm to 1.07 m) Wide
- Five Year Limited Warranty U.L. Listed
Specifications
- Americans with Disabilities Act (ADA) Compliant : Yes
- Body Height (Inches) : 1-11/16
- Body Length (Inches) : 11-5/8
- Body Width (Inches) : 3-11/16
- Brand : Jackson
- Case Quantity : 4
- Closer Package : Yes
- Closer Type : Overhead Concealed
- Handing : Non-Handed
- Includes : 20101M18, 201129
- Material : Aluminum
- Maximum Door Weight (Pounds) : 250
- Package Type : Offset Arm S
- Recommended Door Type : Aluminum, 21201U31318
- Spindle Length (Inches) : 1/2
- Spring Size : Adjustable
- Top Rail Depth (Inches) : 7/8
- UL Listed : Yes

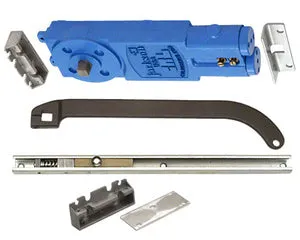

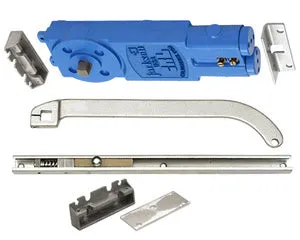

The CRL Jackson ® 21201 Series Overhead Concealed Closer with "S" Offset Slide-Arm Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The Closer is packaged complete with Cat. No. 20951 Mounting Clips, 20942 Offset Arm Package, 20368 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
Downloads
Click for Installation-Instructions
